keynexis NVR

An open NVR for any camera surveillance.

Vendor-independent network video recording with optional AI video analytics — for sites of every kind, fully integrated into the keynexis platform.

Open standards · ONVIF · RTSP Optional edge AI Operated as SaaS
01Why it matters

Cameras — in the same platform that runs your access control and monitoring.

If you already run your sites on keynexis, the NVR adds live view, playback and event management to the platform you log into every day — no second tool, no second login, no parallel infrastructure.

A

One operator view

Floor plans, access control, monitoring and cameras share the same site, the same permissions and the same audit log.

B

Click a camera on the floor plan

Camera icons sit directly on the site's floor plan. One click opens live view or playback for the right room, the right zone, the right moment.

C

Faster incident response

AI events appear on the timeline alongside door, lock and access events — so an incident can be reconstructed in seconds.

D

Operated as SaaS

The hardware sits on site. Software, updates and portal access are provided and maintained by keynexis.

02 / 18
02What it is

A vendor-independent NVR with optional edge AI — delivered as SaaS.

  • RecorderLive view, recording and playback for existing IP camerasAny camera with ONVIF and RTSP can be connected
  • PortalWeb portal with floor plan, camera markers and timelineEmbedded in the keynexis platform
  • AI moduleOptional edge analytics on dedicated hardwareReal-time event detection on selected streams
  • NetworkHardened dual-network designCameras are isolated from the public internet by default
  • OperationSaaS subscription covers software, updates and the portalHardware on site, software cloud-managed
The system is built on open standards, so existing camera infrastructure keeps its value. Recorder, access network and the optional AI module are decoupled — each layer can be sized, scaled or replaced without touching the others.
Up to
25
cameras per site package
Up to
25
AI analysis streams per module
03 / 18
03Architecture

Three layers, cleanly separated.

CAMERA LAN — INTERNAL NVR SERVER — ON SITE ACCESS NETWORK · PORTAL CAM 01 IP Camera CAM 02 IP Camera CAM … IP Camera CAM N IP Camera RTSP / ONVIF PoE · internal VLAN NVR APPLIANCE Recording · Playback · API · Recorder service · Media service (RTSP → HLS / WebRTC) · Backend & API · Reverse proxy (TLS termination) · Local segmented storage NIC 1 — Camera LAN NIC 2 — Access network OPTIONAL — EDGE AI keynexis AI module Real-time analytics · Event API HTTPS · DOMAIN · FIXED IP DMZ / Access network CUSTOMER PORTAL keynexis platform · Floor plan + camera markers · Live view · Playback · Events & alarms EVENT API · WEBHOOK · MQTT to central backend
04 / 18
04Network and security

Cameras stay isolated from the public internet. The portal is the only way in.

NIC 1 · Internal camera LAN
  • PurposeCameras and NVR only
  • ProtocolsRTSP and ONVIF, internal only
  • InternetCameras have no outbound internet access
  • VLANDedicated camera VLAN recommended
  • FirewallOnly the NVR may pull camera streams
NIC 2 · Access network · DMZ
  • AccessHTTPS on port 443, no other ports open
  • External RTSPNever exposed beyond the site
  • AuthenticationPortal login, token or OAuth2
  • TLSCertificate on a public domain or fixed IP
  • AdminVPN or a restricted IP allowlist
05 / 18
05Camera and streaming compatibility

Open standards — so existing cameras keep their value.

Any IP camera with ONVIF Profile S and RTSP can be connected. The platform handles transcoding for browser delivery.

Area Standard / Format
Camera discoveryONVIF (Profile S)
Stream retrievalRTSP
Recommended video codecH.264
Optional video codecH.265 / HEVC
Storage formatSegmented MP4 / fMP4
Browser live viewWebRTC (low latency) or HLS
Browser playbackHLS, fMP4 or direct segment delivery
06 / 18

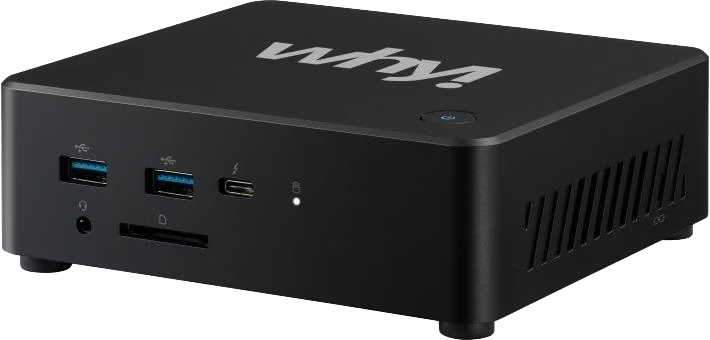

06NVR appliance

A compact on-site recorder, sized for an entire site.

The base appliance is designed for around 25 active cameras per site package and technically sized for 32 to 64 parallel recording streams.

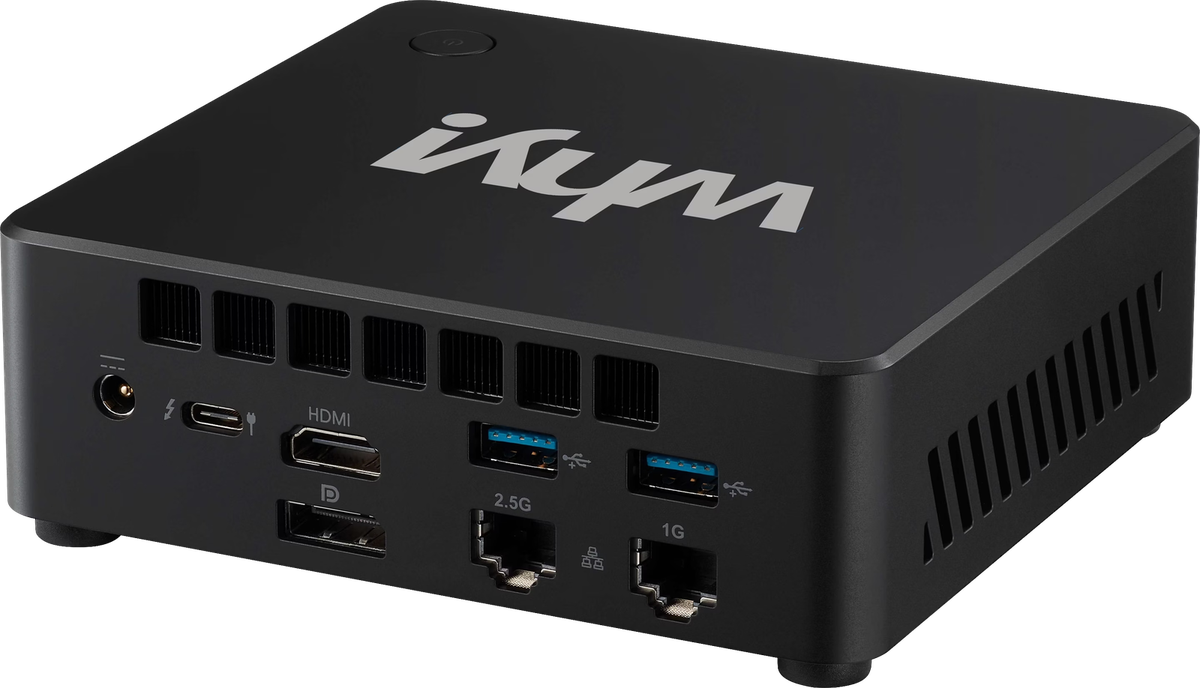

keynexis NVR appliance — rear I/O with dual Ethernet
  • CPUIntel Core i5-1450014 cores · 20 threads
  • GraphicsIntel UHD Graphics 770
  • Memory64 GB DDR5
  • Network2 × Ethernet, 2.5 Gbit/sDual NIC for camera LAN and access network
  • OS / runtimeUbuntu Server · Docker-based services
  • StorageSelected separately — see storage options
One-time hardware
On request
07 / 18
07Storage options

Choose capacity to match retention period and site size.

Rule of thumb — 25 cameras at 4 Mbit/s each generate around 1 TB of recorded video per day. Storage is sized for the site's required retention period.

Option Technical class Suitable for
1 TB SSD NVMe — system & cache SSD Small installations, pilot projects, short playback retention
4 TB SSD NVMe — high-performance local video storage Mid-sized installations, several days of playback retention
8 TB SSD SATA or NVMe, depending on availability Larger sites, longer local retention

Storage is quoted on request, together with the appliance. For sustained high write loads, large camera counts and long retention periods, enterprise SSDs, HDD RAID or attached NAS/SAN storage can be offered on a per-project basis.

08 / 18
08Optional AI module

A dedicated GPU server for real-time video analytics.

The AI module runs on its own hardware alongside the NVR and analyzes selected camera streams in real time. The analytics model is maintained by keynexis as part of the SaaS.

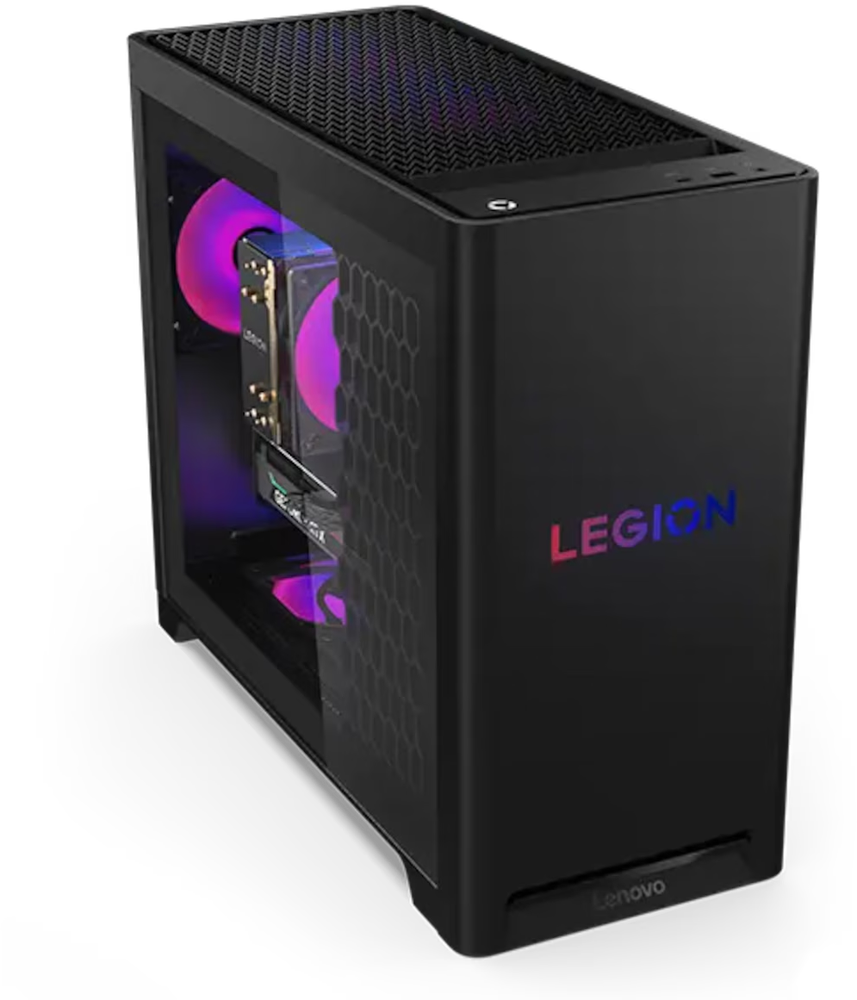

keynexis AI module — Lenovo Legion Tower 5 Gen 10
  • PlatformLenovo Legion Tower 5 Gen 10 (AMD)On-site GPU server, installed next to the NVR
  • GPUNVIDIA GeForce RTX 5070 · 12 GB GDDR7Stream decoding and inference on one card
  • CPU / memoryAMD Ryzen 7 7700X · 32 GB DDR5-56008 cores / 16 threads · expandable to 64 GB
  • Storage / OS1 TB NVMe SSD · Ubuntu Server, DockerSame container runtime as the NVR appliance
  • CapacityUp to 25 analysis streams in parallelSubstream at 720p · 5–10 fps recommended
One-time hardware
On request
09 / 18
09AI detection scenarios

Preconfigured event types for real-world surveillance environments.

01

Person on the ground

A person remains on the ground longer than a configured threshold — reported as a high-priority event.

02

Unusual movement

Movement patterns that deviate from normal behavior at the site — by time of day or zone.

03

Restricted-zone entry

A person enters a zone defined as off-limits — e.g. a plant room, storage or staff area.

04

Crowd formation

Several people gather in a defined area, exceeding a configured count.

05

Object left behind or removed

An item left behind, or an item removed from a monitored area — useful for entrance and corridor zones.

06

Safety incident

A fall, sudden standstill or escalation pattern — shown to the operator immediately for review.

Customer-specific training, additional models, industry-specific certifications and special-purpose analytics can be offered as a separate service.

10 / 18
10Event handling

From detection at the edge to an alarm on the floor plan.

  1. 01
    NVR or camera delivers an analysis stream
    Typically a dedicated substream — 720p, 5–10 fps
  2. 02
    The keynexis model analyzes every frame
    Runs on the on-site AI module — no video leaves the site
  3. 03
    An event is generated with confidence score and zone
    Delivered via event API, MQTT or webhook
  4. 04
    The portal raises an alarm, marker or timeline entry
    The operator opens the snapshot and jumps to playback in one click
Example event payload
"event_type": "person_lying",
"camera_id": "cam_012",
"site_id": "site_zh_001",
"timestamp": "2026-05-28T14:35:21+02:00",
"confidence": 0.91,
"zone": "entrance_area",
"duration_seconds": 18,
"snapshot_available": true,
"severity": "high"
11 / 18
11SaaS subscription

Hardware on site, software as SaaS.

The monthly subscription covers software operation, updates, portal integration and the defined feature set. The hardware stays on site at the customer's premises.

NVR SaaS
On request
Billed monthly · per site package · up to 25 cameras
  • CamerasCamera ID, stream URL and site management
  • RecordingContinuous recording and segmentation
  • PlaybackTime-based access to stored streams
  • PortalFloor plan integration and camera markers
  • UsersRoles, permissions and access control
  • UpdatesSoftware maintenance and feature updates
AI SaaS
On request
Billed monthly · up to 25 analysis streams
  • PipelineOperation of the keynexis analytics environment
  • StreamsUp to 25 defined analysis streams
  • DetectionDetection of predefined event types
  • Event APIDelivery to the NVR and central backend
  • Portal eventsTimeline, alarm view and floor plan markers
  • RulesConfiguration of thresholds and zones
12 / 18
12Customer packages

Four quote-ready packages.

Each package combines one-time hardware with a monthly software subscription. Pricing is prepared per project on request — additional services are quoted separately.

NVR Start
NVR appliance 1 TB SSD NVR SaaS
One-timeOn request
MonthlyOn request
NVR Standard
NVR appliance 4 TB SSD NVR SaaS
One-timeOn request
MonthlyOn request
NVR Extended
NVR appliance 8 TB SSD NVR SaaS
One-timeOn request
MonthlyOn request
AI included
NVR AI Standard
NVR appliance 8 TB SSD keynexis AI module NVR SaaS + AI SaaS
One-timeOn request
MonthlyOn request
13 / 18
13Services not included

Scoped separately, quoted per project.

The following items sit deliberately outside the standard package and are quoted per project to match the individual site.

  • CamerasExisting cameras can be integrated; new cameras quoted separately
  • PoE switchesDepends on camera count and site layout
  • CablingBy the customer or an integration partner
  • On-site installationQuoted separately, based on effort
  • Internet connectionProvided by the customer
  • DomainProvided by the customer or managed separately
  • Backup storageOptional, depending on retention obligations
  • Custom AI modelsSeparate training and validation
  • Privacy documentationPrepared per project
  • On-site maintenanceOptional service contract
14 / 18
14Data protection and operation

Designed for responsible handling of video data.

  • Access controlRole-based user permissions and groups
  • EncryptionHTTPS for portal and API traffic
  • Camera networkSeparate, non-public network segment
  • RetentionDefined retention period per camera
  • Audit logUser access traceable in the audit log
  • ExportRestricted to authorized users
  • AI snapshotsStorage of event snapshots is configurable
  • DeletionAutomatic deletion once the retention period expires
15 / 18
15AI video analytics in practice

Real-time detection, directly on the camera image.

Person on the ground
Person with a weapon
Face concealment
16 / 18
16AI video analytics in practice

Reliable across different environments.

Blunt weapon / threatening gesture
Abnormal gait
17 / 18
17Modular and scalable

Start where it makes sense. Expand when it pays off.

Base
NVR appliance, storage and NVR SaaS

Live view, recording, playback and portal integration for one site. Can be quoted as a fixed package.

Optional
Add the keynexis AI module

Real-time analytics on selected streams, events directly in the timeline.

Scale
More storage, more sites, more AI modules

Add capacity per site, extra NVR nodes or further AI modules as the installed base grows.

Next step
Let's plan your sites together.
